Porozit N2

Reliable porosity measurement system trusted by professionals. Accurate, consistent, and easy to operate in real inspection conditions.

€845,00

High-precision gravitational airflow measurement
Updated body with improved sealing performance
Porozit N2 has double neodymium magnets to eliminate false air
Narrow head design — fits all XC paraglider cells
More precise trigger mechanism for repeatable measurements
4-digit LED display (4×7 segment)
Results in seconds with consistent accuracy
24h continuous operation with built-in rechargeable battery

Estimated delivery:

Shipping calculated at checkout

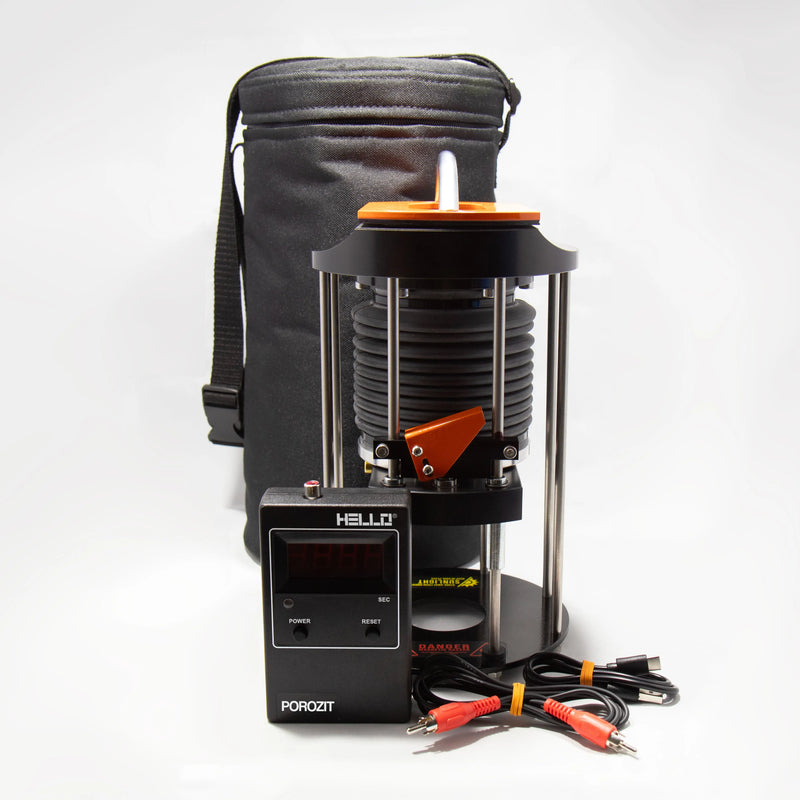

Included: Porozit N2 Body, N2 Control Unit, RCA Cable, USB-C Charging Cable, Power Adapter, Carrying Bag, User Manual, Stickers

learn more

General Information
Tech Specs
How to Use

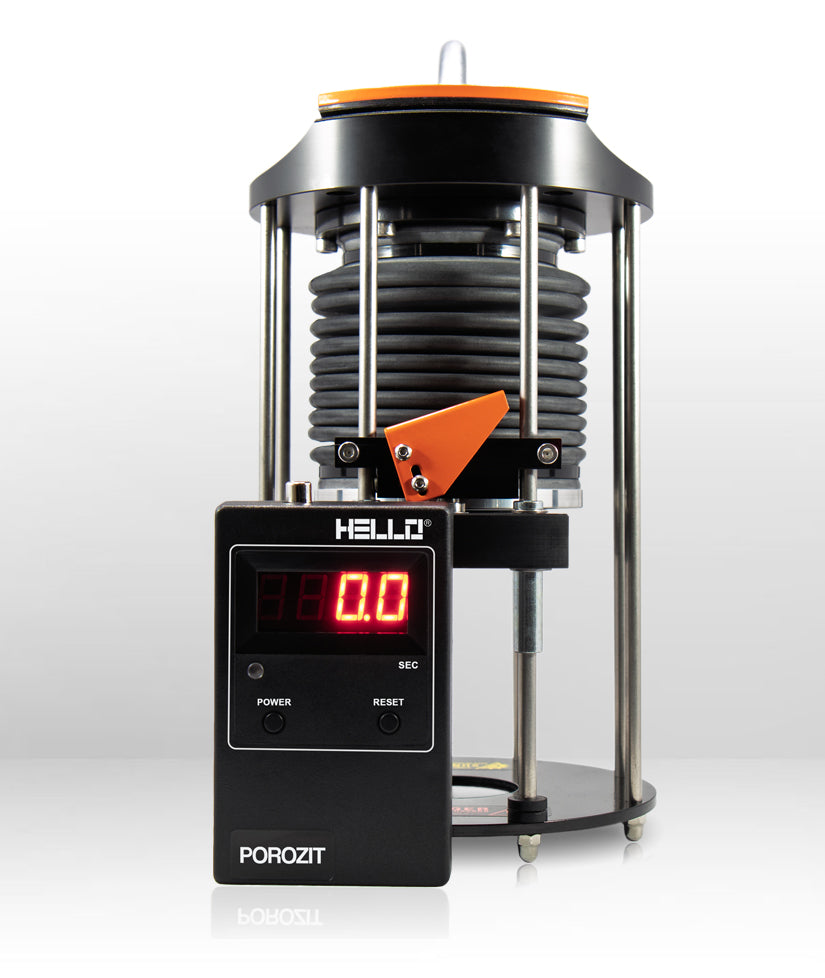

Reliable Measurement. Proven in the Field.

The Porozit N2 Complete Instrument is a professional porosity measurement system designed for paraglider inspections, maintenance, and service applications. Built on a proven measurement principle, it delivers accurate and repeatable results in both workshop and field conditions.

Used by paragliding service centers, inspection professionals, and manufacturers worldwide, the N2 has become a trusted tool for evaluating fabric condition and supporting safety-critical decisions.

Trusted by Professionals Worldwide

The Porozit N2 system is used across 67 countries, making it one of the most widely adopted porosity measurement solutions in the paragliding industry.

From independent inspectors to large-scale manufacturers, professionals rely on the N2 for its consistency, durability, and ease of use in real-world environments.

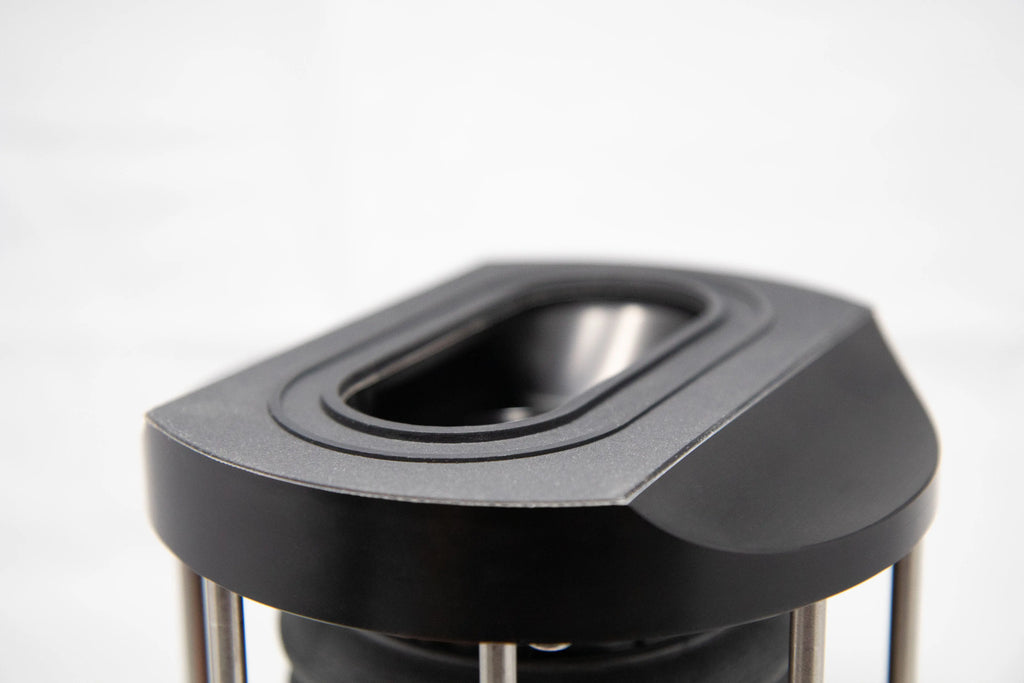

Precision engineering where it matters

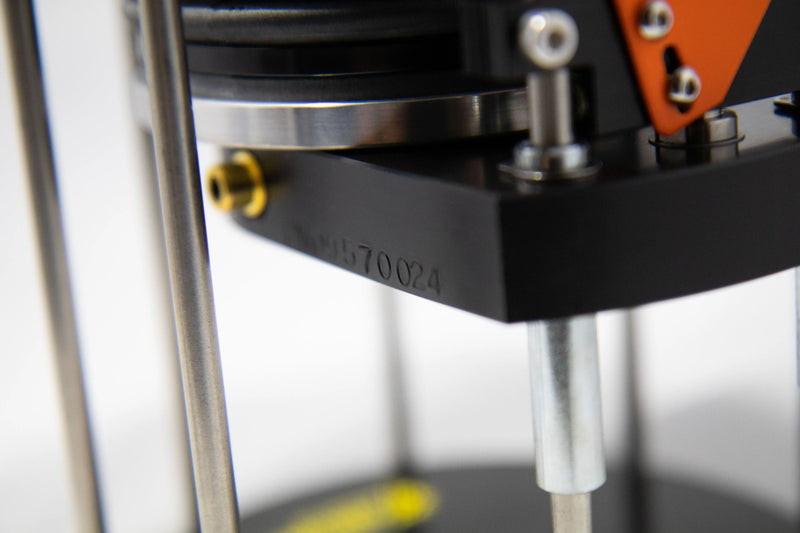

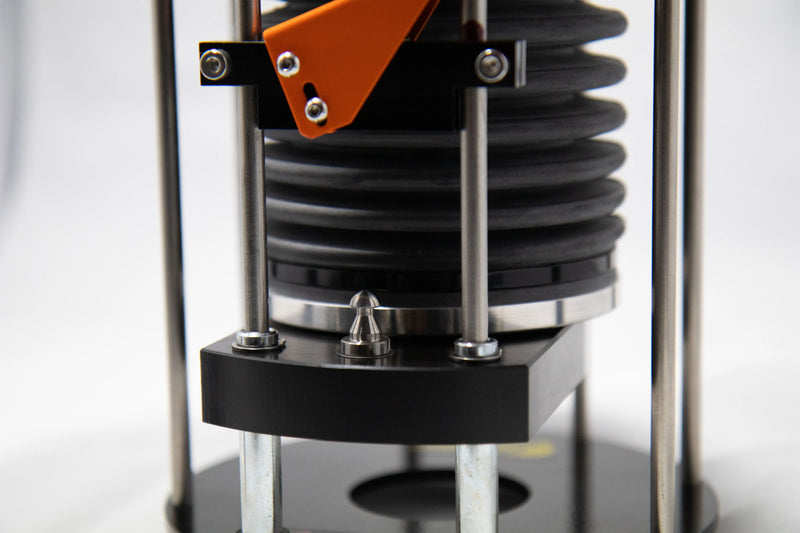

At the core of the system is the redesigned Porozit body, featuring:

Double neodymium magnets for strong sealing and elimination of false air
High rubber wall design for better contact on worn or high-porosity fabrics
Narrow head geometry for accessing tight XC paraglider cells

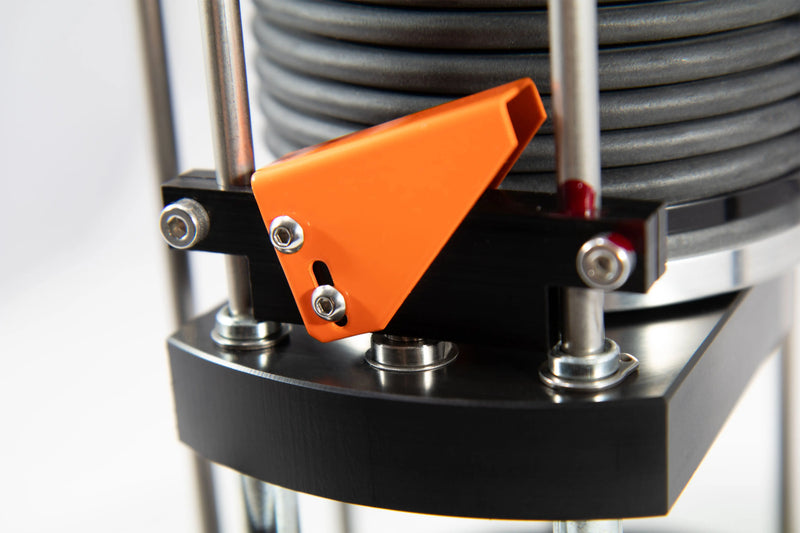

Refined trigger mechanism for consistent and repeatable measurements

These improvements are based on real feedback from field use, ensuring reliable performance in demanding conditions.

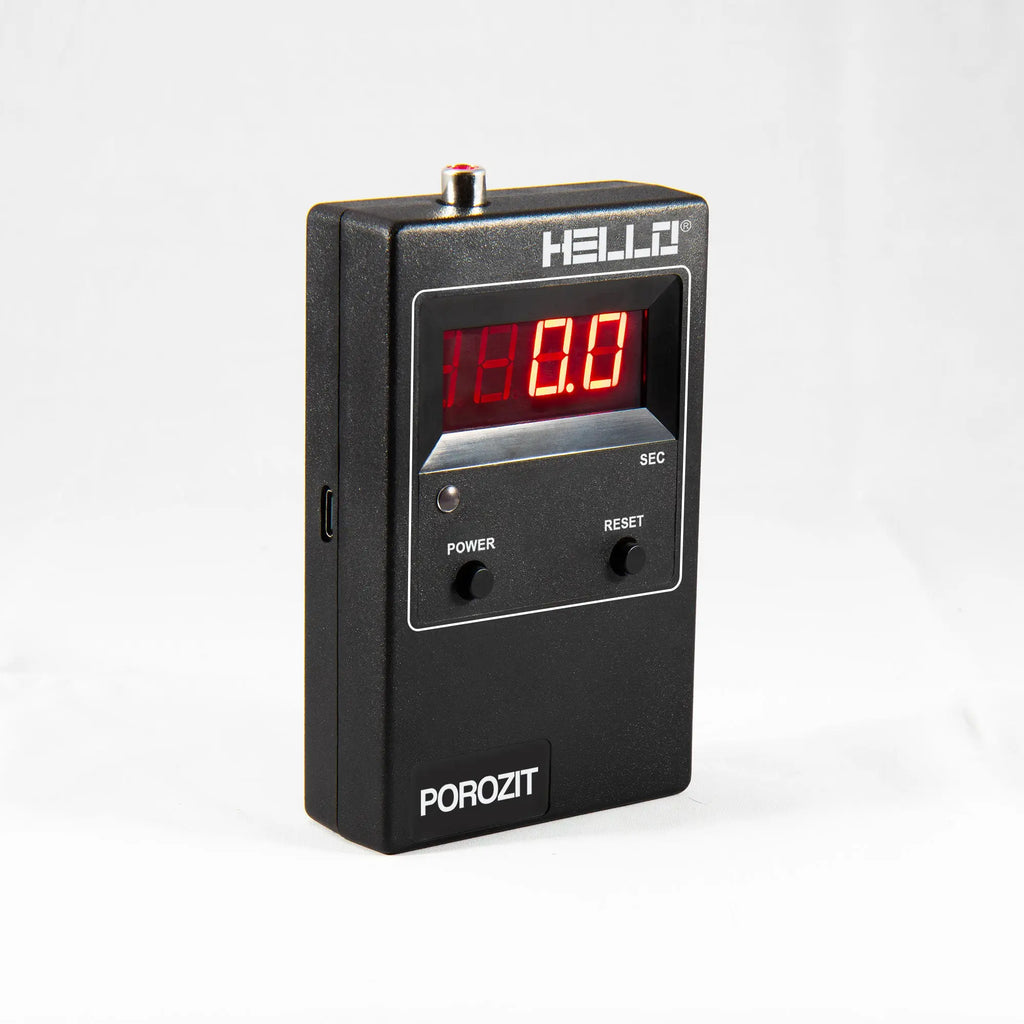

Designed for Inspection Workflows

The N2 Complete is built specifically for inspection and service workflows, where reliability and speed are essential.

Fast measurement process
Clear and easy-to-read results
Minimal setup and intuitive operation

This allows professionals to perform full wing inspections efficiently, without unnecessary complexity.

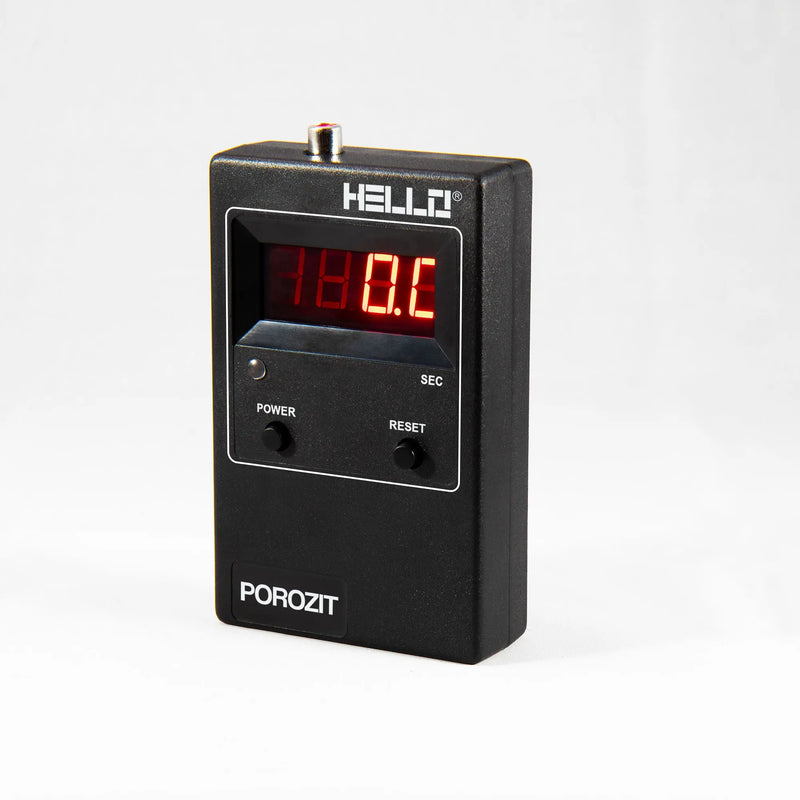

The N2 control unit is designed for straightforward operation, allowing users to focus entirely on measurement.

With a clear LED display and minimal controls, it provides a dependable and distraction-free workflow—ideal for professionals who need accurate results without advanced interface complexity.

Evaluation of Measurements Excellent

Good: < 375 l/m²/min / > 20 sec
Acceptable: 375-536 l/m²/min / 14-20 sec
Fail: > 536 l/m²/min / < 14 sec

In the Settings you can change the unit of l/m²/min (at 200 mm water pressure).

Measurement Specifications

Average measurement vacuum

10 mbar

Airflow surface area

38.5 cm²

Measured air volume

250 cm³

Measurement accuracy

±3%

Relative humidity (max)

60%

Operating temperature range

+15 °C to +25 °C

Intrument (Porozit N2 Body)

Measurement principle

Gravitational airflow measurement

Dimensions

20cm × 20cm × 32cm

Weight

4.1 kg

Magnetic system

Dual neodymium magnets for high sealing force

Sealing design

High rubber wall for improved contact on high-porosity materials

Head design

Narrow geometry for XC paraglider cells

Trigger mechanism

Precision mechanical trigger for consistent activation

Airflow system

Closed measurement chamber minimizing false air

Power & Battery

Battery type

Li-Po

Battery capacity

1800 mAh

Operating time

~24 hours

Charging

USB-C

Charging input

5V / 1.2A

Included adapter

5V / 2A

Full charging time

~3 hours

Charging note

USB-C cable and power adapter included

Display

Display type

High-brightness LED (4×7 segment)

Device

Dimensions

120 × 75 × 28 mm

Weight

150 g

Housing material

ABS

Functionality

Measurement units

sec

Connectivity

Connection

RCA

Compatibility

Compatible with all Porozit bodies

Operating temperature

-10 °C to +50 °C

Water resistance

How to Use – Porozit N2

1. Connect

Connect the control unit to the Porozit body and plug the jack cable into the control unit and the RCA cable into the body.

2. Remove the lid

Remove the top lid from the measurement head

3. Place the fabric

Place the fabric between the body and the lid, then close it securely

4. Start the Measurement

Turn on the device and wait until the display is ready and shows “0”

5. Run the Test

Release the trigger to let the internal cylinder fall freely and wait for the beep indicating the end of the measurement.

How to use

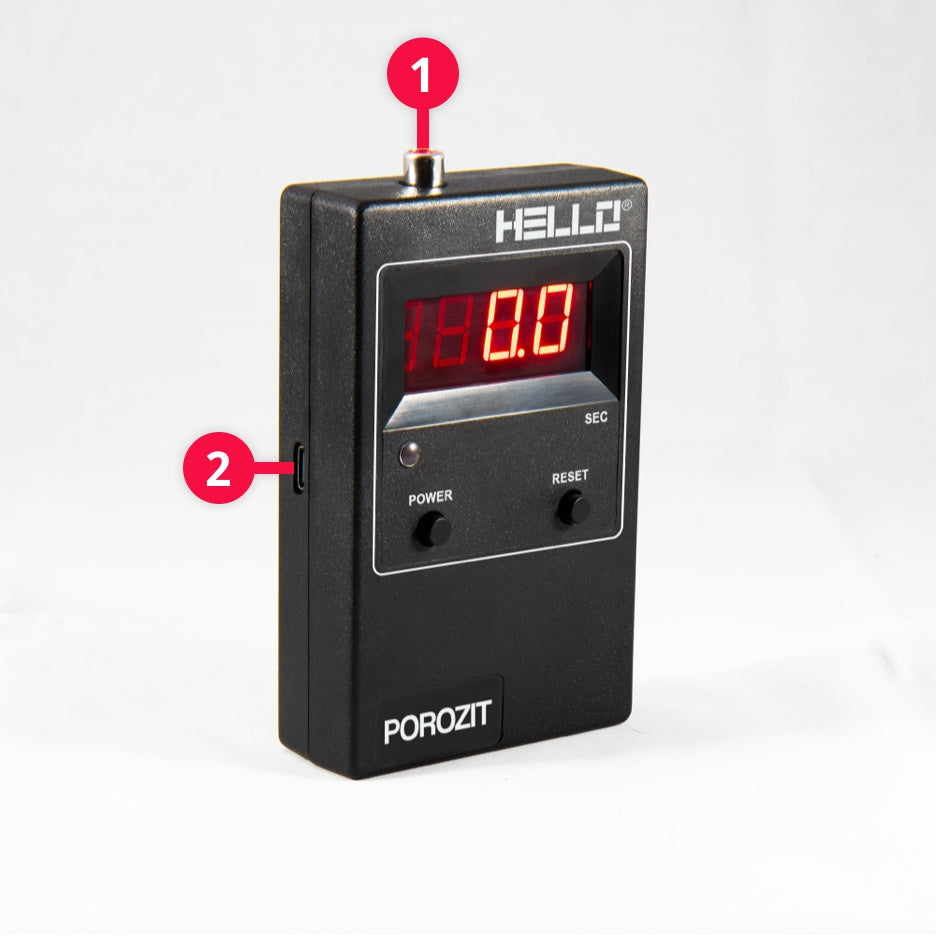

Inputs

RCA input for connection to the Porozit Body
USB-C charging port (max. 2A)

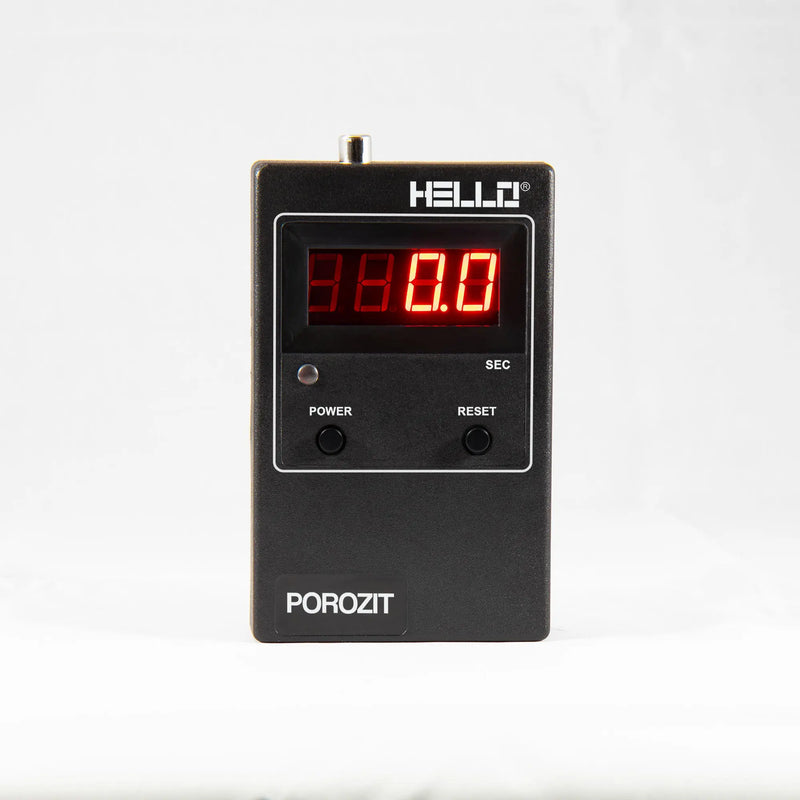

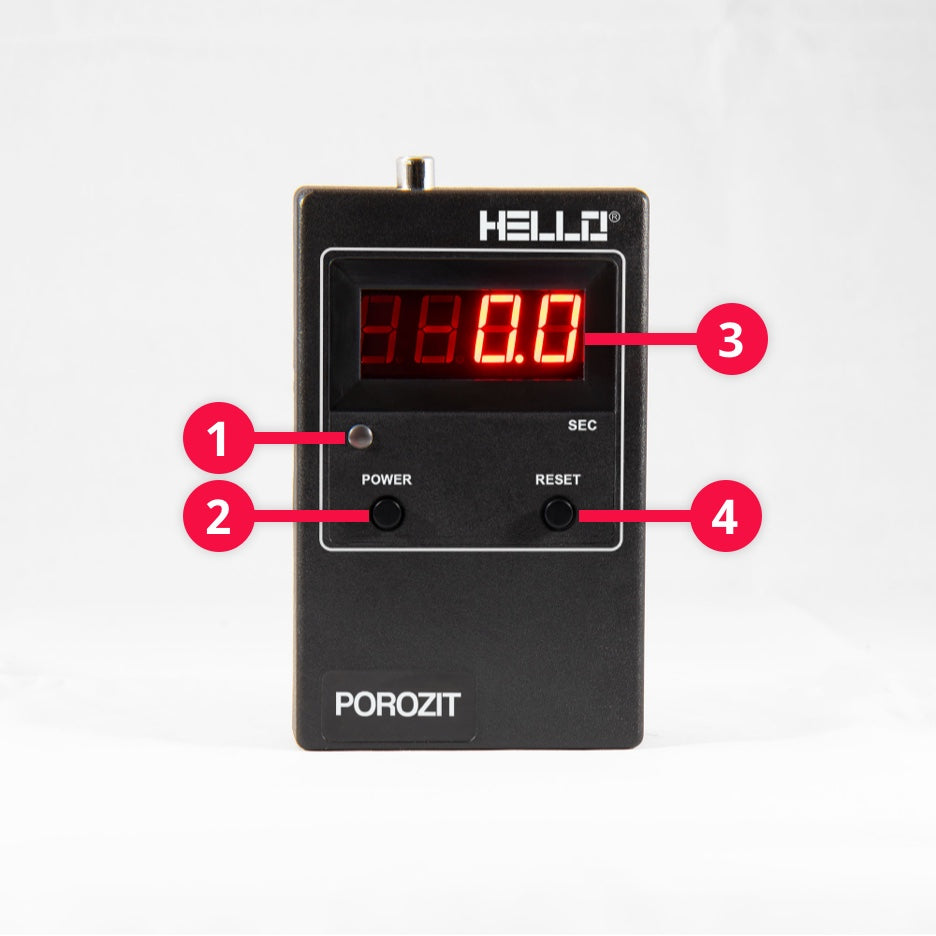

Buttons & Display

Battery indicator (red = charging, green = fully charged)
Power button (turns the device on/off)
4-digit display (seconds)
Reset button (resets the measurement)

Beep Interval Adjustment

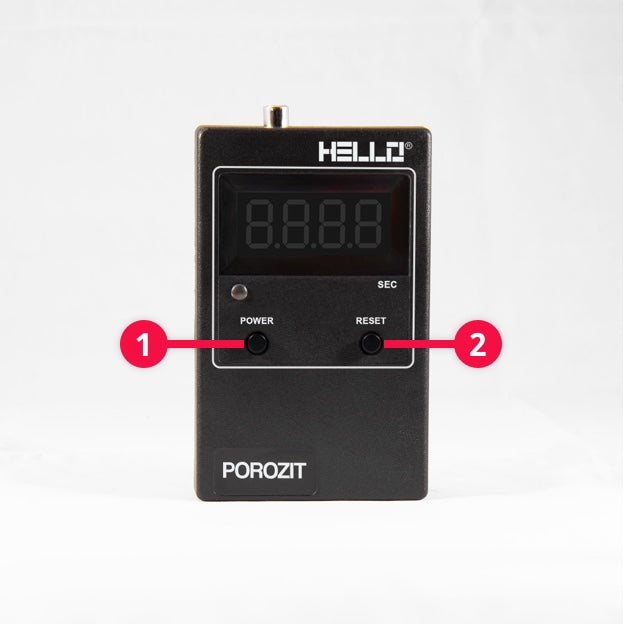

Beep Interval Menu

Press the Power button
Before “0” appears on the display, press and hold the Reset button

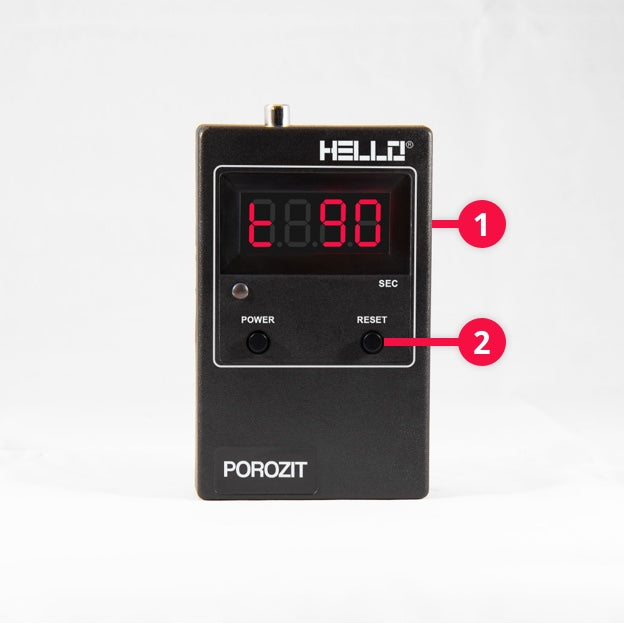

Set the Interval

The display shows “t 90” (90 seconds). This is the default beep interval
Press the Reset button to adjust the interval from 0 to 300 seconds in 30-second steps (“0” means the sound is muted)

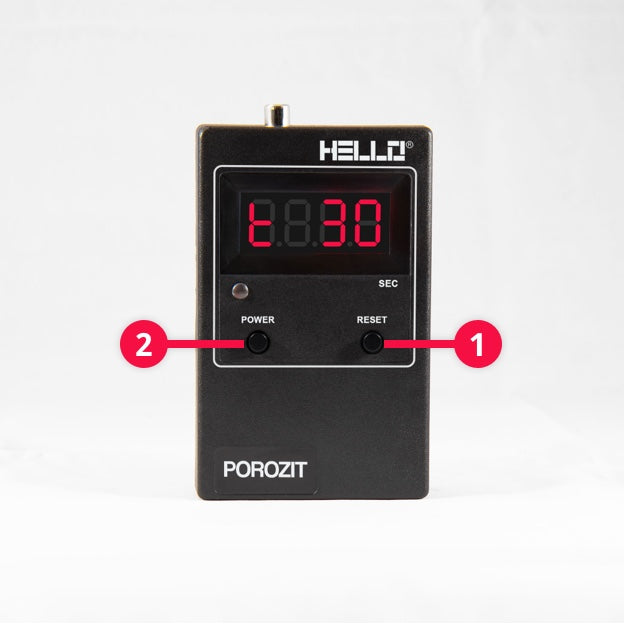

Save the Settings

Press and hold the Reset button to save the selected value
Turn the device off and on again (using the Power button)

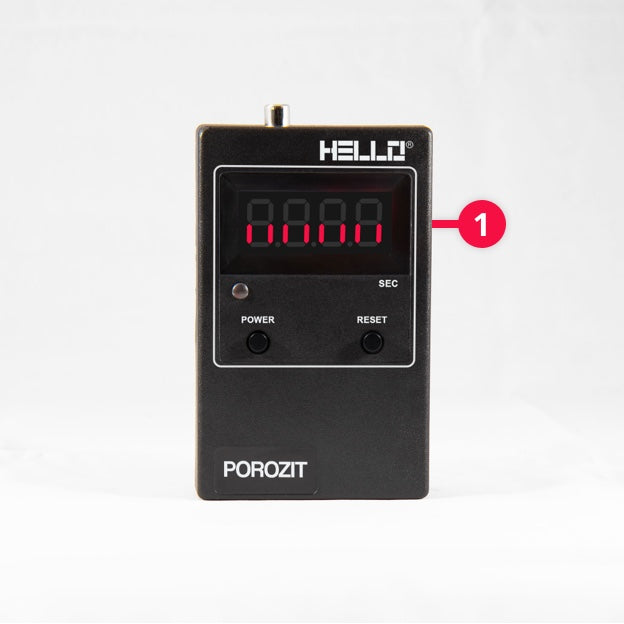

Battery Display

Battery level

When the device is turned on, the display shows the battery level using vertical bars. 1 bar = 12.5% | 8 bars = 100% | 2 bars = 25%
