Porozit N2+

Professional porosity measurement system for paraglider inspection. Maximum precision, reliability, and full control in one complete solution.

€1.090,00

Porozit N2+ is High-precision gravitational airflow measurement
Touchscreen control unit for fast and intuitive operation
Results in seconds with memory & averaging
Dual-unit support | seconds & L/m²/sec
12h continuous operation with built-in rechargeable battery
Updated body with improved sealing performance
Double neodymium magnets to eliminate false air
Narrow head design — fits all XC paraglider cells
More precise trigger mechanism for consistent measurements

Estimated delivery:

Shipping calculated at checkout

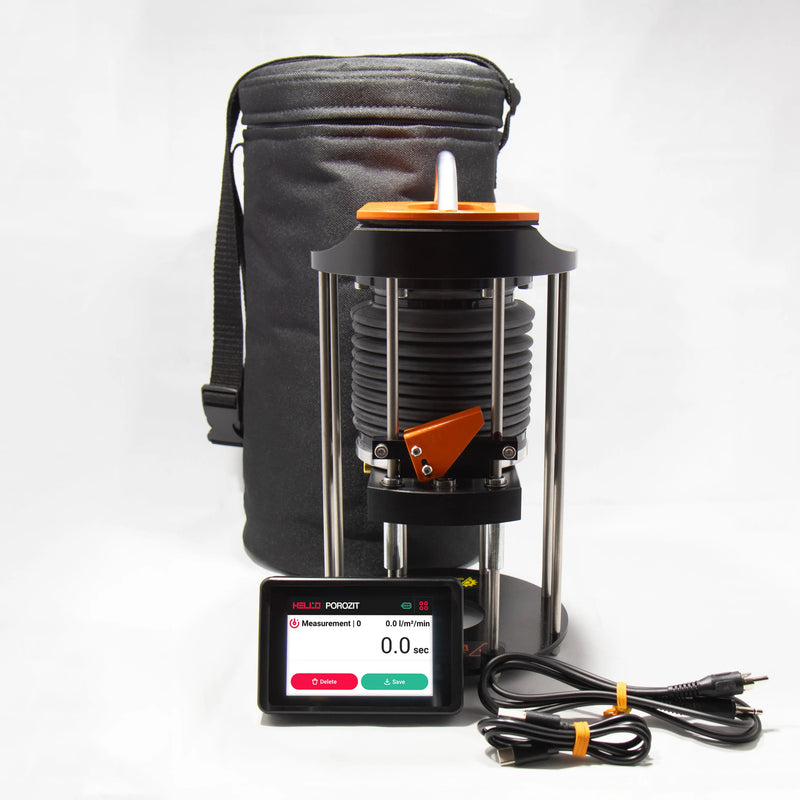

Included: Porozit N2 Body, N2+ Control Unit, Connection Cable, USB-C Charging Cable, Power Adapter, Carrying Bag, User Manual, Stickers

learn more

General Information
Tech Specs
How to Use

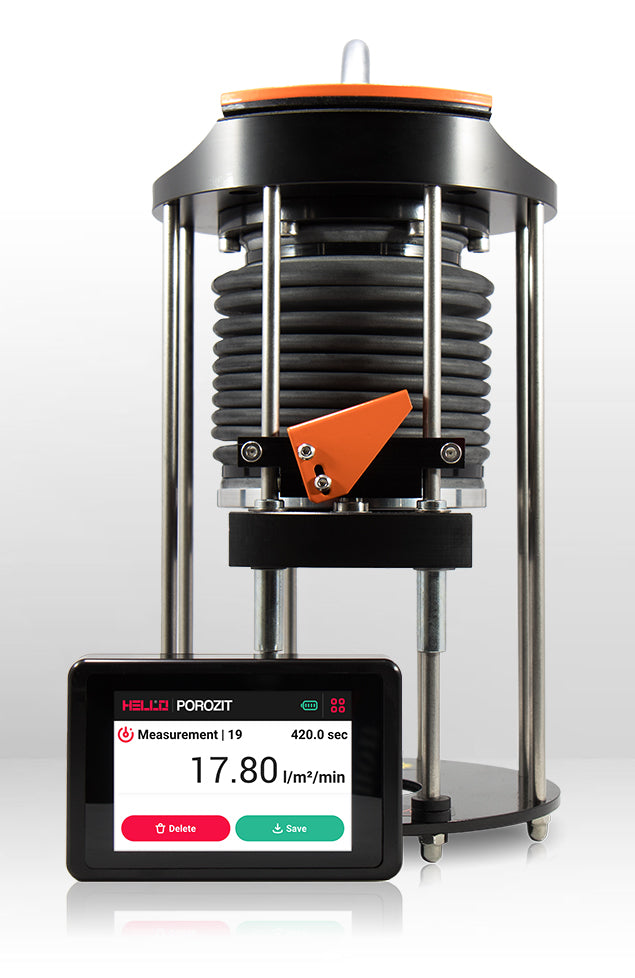

Professional Paragliding Measurement. Built for Real Conditions.

The Porozit N2+ Complete Instrument is a fully integrated porosity measurement system designed specifically for paragliding inspection and certification workflows. Developed through years of real-world use, it delivers fast, repeatable, and highly accurate results—whether in a workshop, at an inspection center, or directly in the field.

Trusted by paraglider manufacturers, inspection centers, repair shops, and paragliding schools worldwide, the N2+ has become a reliable standard for evaluating fabric condition and supporting safe flight decisions. From routine checks to full wing inspections, it provides consistent data where accuracy truly matters.

Unlike simplified handheld solutions, the N2+ operates on a gravitational airflow measurement principle, ensuring stable and repeatable readings independent of external variables. This makes it especially suited for professional environments where precision and consistency are critical.

Designed as a Complete System

The N2+ is not just a device—it is a complete measurement ecosystem. Every component is engineered to work together seamlessly, from the precision mechanical body to the touchscreen control unit.

The integrated system eliminates guesswork and setup complexity, allowing you to focus entirely on the measurement process. From the first test to full wing inspection, everything is optimized for efficiency and clarity.

Precision Engineering Where It Matters

At the core of the system is the redesigned Porozit body, featuring multiple mechanical improvements:

Double neodymium magnets ensure a strong and stable seal, effectively eliminating false air
High rubber wall design improves contact on high-porosity materials
Narrower head geometry allows measurements even in tight XC paraglider cells

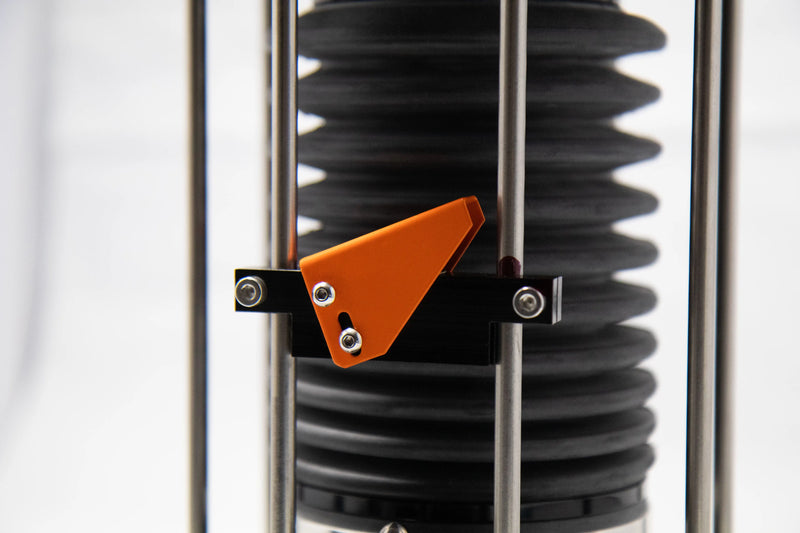

Refined trigger mechanism delivers more consistent and repeatable results

These enhancements are based on real feedback from professional users, ensuring performance in demanding conditions.

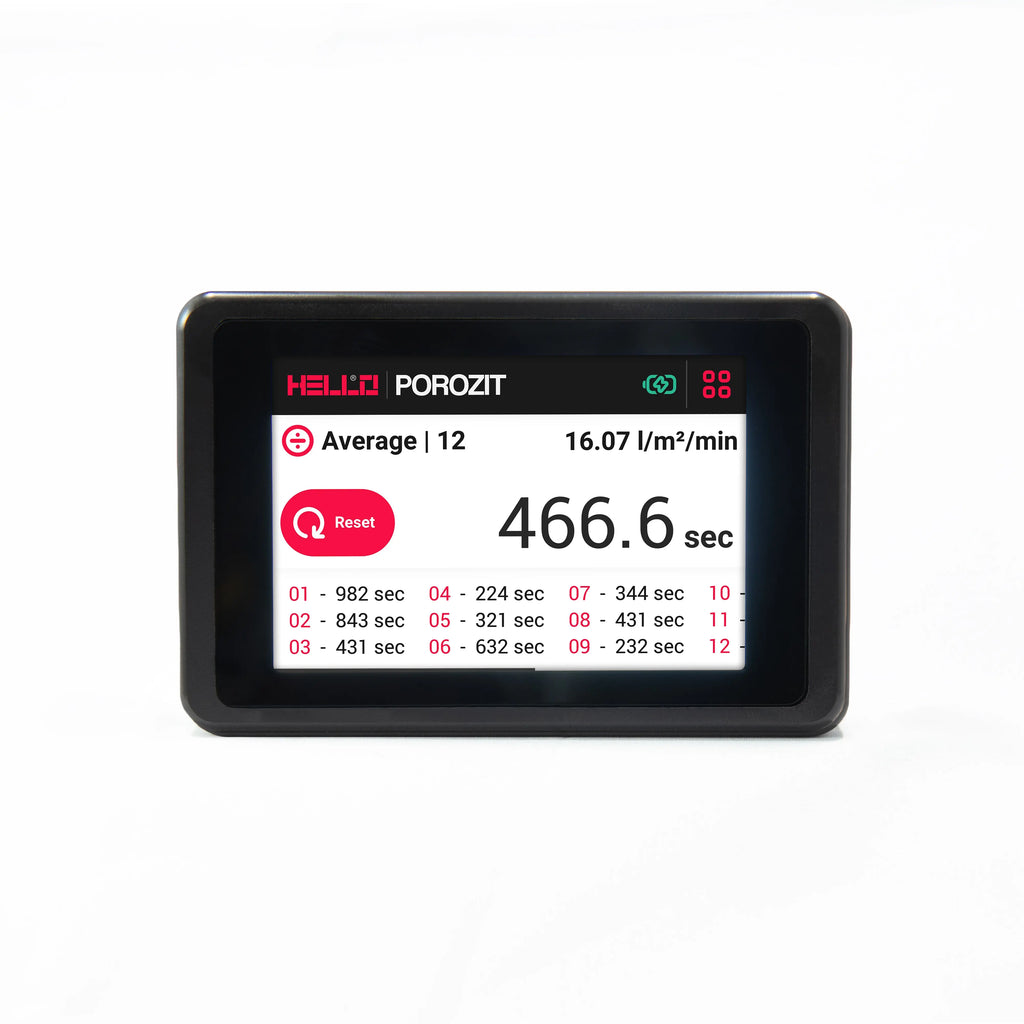

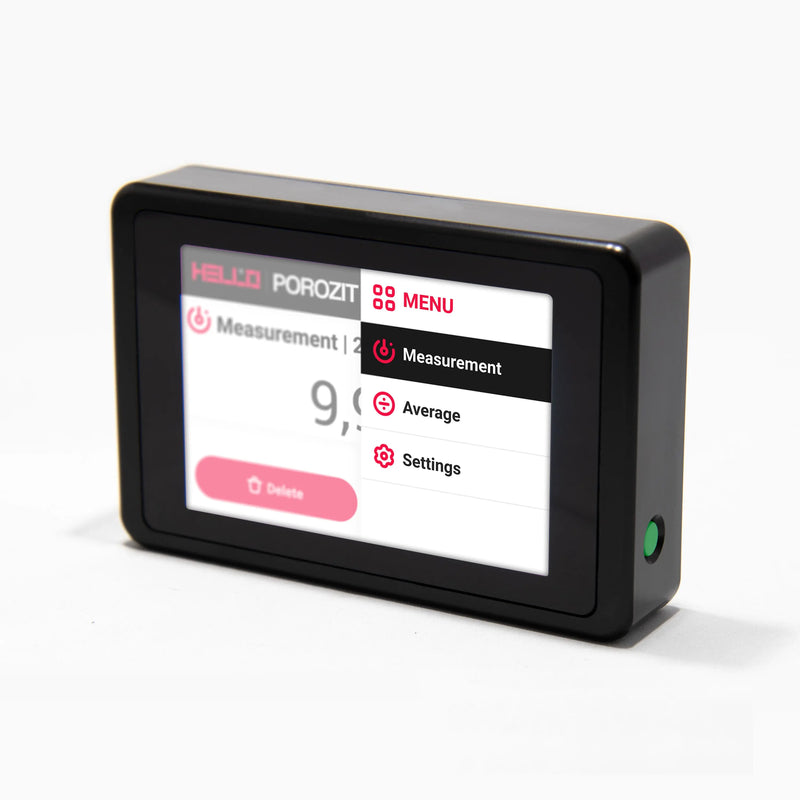

Smart Control with Touchscreen Interface

The N2+ Control Unit transforms measurement into a fast and intuitive workflow. The modern touchscreen interface allows you to:

Start and manage measurements instantly
Review results in real time
Save and compare data
Switch between units effortlessly

With built-in memory and averaging functions, the system supports efficient data collection and analysis—ideal for professional inspections.

Reliable Performance, Anywhere

The integrated rechargeable battery provides up to 12 hours of continuous operation, ensuring uninterrupted workflow even during long inspection sessions.

USB-C charging allows flexible power options, including power banks, making the system suitable for both workshop and field use.

Built for Professionals

Every detail of the N2+ is designed with professional use in mind—from mechanical durability to measurement consistency. Whether you are inspecting a single wing or performing full fleet checks, the system delivers the precision and reliability required for confident decision-making.

Evaluation of Measurements Excellent

Good: < 375 l/m²/min / > 20 sec
Acceptable: 375-536 l/m²/min / 14-20 sec
Fail: > 536 l/m²/min / < 14 sec

In the Settings you can change the unit of l/m²/min (at 200 mm water pressure).

Measurement Specifications

Average measurement vacuum

10 mbar

Airflow surface area

38.5 cm²

Measured air volume

250 cm³

Measurement accuracy

±3%

Relative humidity (max)

60%

Operating temperature range

+15 °C to +25 °C

Intrument (Porozit N2 Body)

Measurement principle

Gravitational airflow measurement

Dimensions

20cm × 20cm × 32cm

Weight

4.1 kg

Magnetic system

Dual neodymium magnets for high sealing force

Sealing design

High rubber wall for improved contact on high-porosity materials

Head design

Narrow geometry for XC paraglider cells

Trigger mechanism

Precision mechanical trigger for consistent activation

Airflow system

Closed measurement chamber minimizing false air

Device

Dimensions

105 × 69 × 23 mm

Weight

180 g

Housing material

POM

Power & Battery

Battery type

Li-Po

Battery capacity

2000 mAh

Operating time

~12 hours

Charging

USB-C

Charging input

5V / 1.2A

Included adapter

5V / 2A

Full charging time

~3 hours

Charging note

USB-C cable and power adapter included

Display

Display type

IPS touchscreen

Display size

3.5"

Functionality

Measurement units

sec & l/m²/min (under 200 mbar)

Memory

up to 24 measurements (rounds)

Average calculation

Yes

Interface language

English

Connectivity

Connection

3.5 mm mono jack

Compatibility

Compatible with all Porozit bodies

Operating Conditions

Operating temperature

-10 °C to +50 °C

Water resistance

How to Use – Porozit N2+

1. Connect

Connect the control unit to the Porozit body and plug the jack cable into the control unit and the RCA cable into the body.

2. Remove the lid

Remove the top lid from the measurement head

3. Place the fabric

Place the fabric between the body and the lid, then close it securely

4. Start the Measurement

Turn on the device and wait until the display is ready and shows “0”

5. Run the Test

Release the trigger to let the internal cylinder fall freely and wait for the beep indicating the end of the measurement

Outside of the device

Right Side

Power button. Press and hold to turn the device on or off.

Left Side

2.5 mm jack for connecting the device to the Porozit body
USB-C charging port. Charge with a maximum of 2A. The battery icon indicates the current charge level.

User interface

Home / Measurement

Battery level indicator
Menu button
Secondary measurement value
Primary measurement value
Save / Delete measurement

Average

Total number of measurements
Reset the entire session
Individual measurements with horizontal scroll

Settings

Primary mesasurement unit
Beep interval
Beep volume
Vertical scroll: Screen brightness, Auto sleep time, Language

Results intervals

Good

< 375 l/m²/min
> 20 sec

Acceptable

375-536 l/m²/min
14-20

Fail

> 536 l/m²/min
< 14 sec
